| Precio en Pesos Mexicanos |
RODAMIENTO DE BOLAS RADIAL/RANURA PROFUNDA - DIÁMETRO RECTO,
0,7500 IN DI, 1,6250 IN OD, 0,4375 IN ANCHO, DOBLE SELLADO, SIN ANILLO DE
PRESIÓN
Bore Type: Straight
Bore Diameter: 0.7500 in - 3/4 in
Outside Diameter: 1.6250 in - 1-5/8 in
Overall Width: 0.4375 in - 7/16 in
Closure Type: Double Sealed
Snap Ring Included: Without Snap Ring
Contact Angle: Not Applicable
Bearing Material: Bearing steel
Cage Material: Bearing steel
Cage Type: Sheet metal

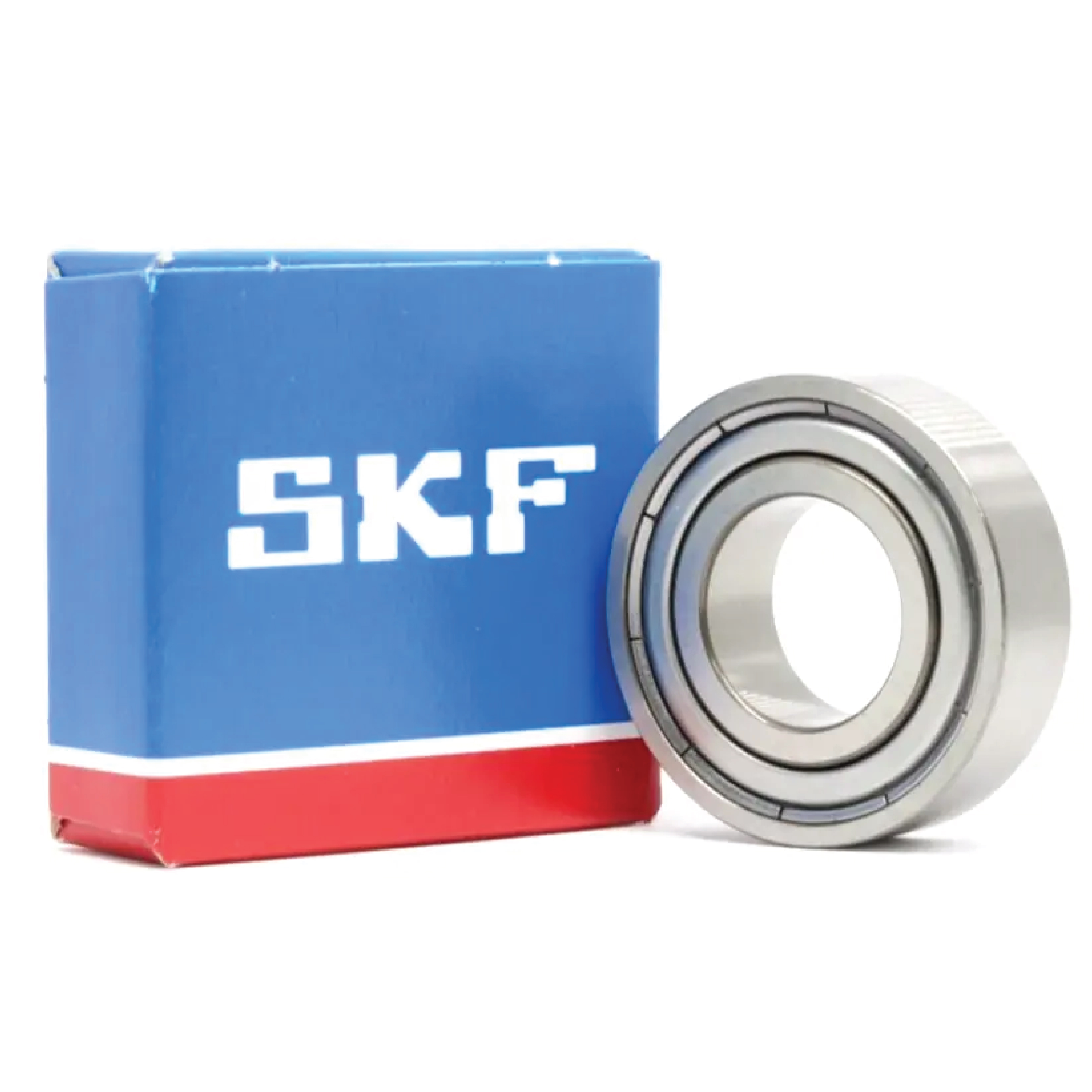

Description: R12ZZ BRG
Element Material: Bearing steel
Fillet Radius: 0.79 mm
Finish Coating: Uncoated
Inner Ring Width: 11.1125 mm
Internal Clearance: CN, CN
Max Rpm: 19000 rpm
Precision Rating: ABEC 1
Radial Dynamic Load Capacity: 2100 lbf
Radial Static Load Capacity: 1150 lbf
Seal Material: Nitrile Rubber
Series: R
Standards Met: ABMA
Weight: 0.15 lbs
Bore Diameter: 0.7500 in
Bore Type: Straight
Closure Type: Double Sealed
Outside Diameter: 1.6250 in
Overall Width: 0.4375 in
Snap Ring Included: Without Snap Ring
