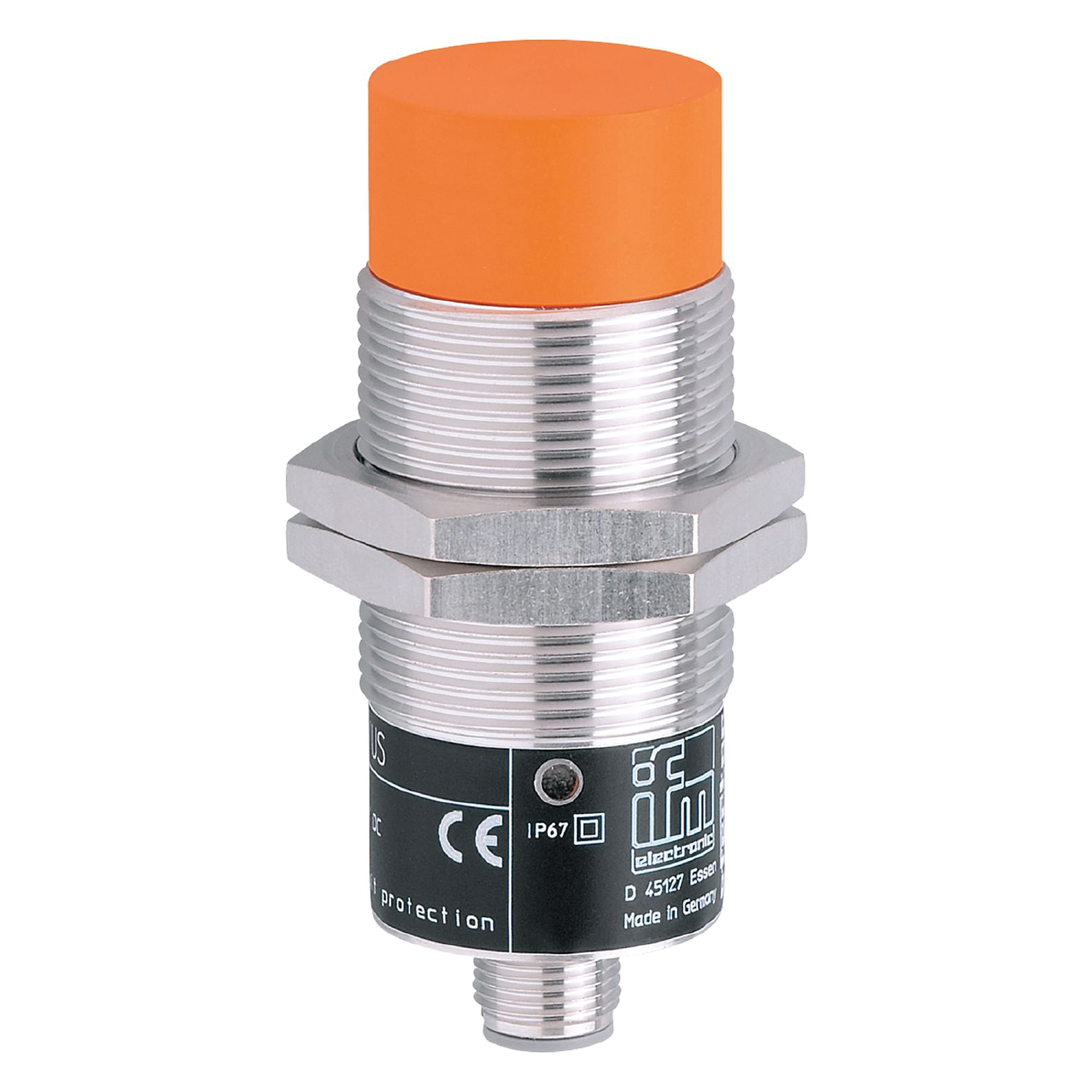

Inductive sensor II0295
IIA2015-ABOA/SL/LS-100AK RT
With combined AC/DC output stage
Two-wire technology
Wide operating temperature range
Robust metal housing for use in harsh industrial
environments
With robust 1/2" connector
| PRODUCT CHARACTERISTICS | |
| OUTPUT FUNCTION: NORMALLY OPEN | |
| SENSING RANGE [MM]:15 | |
| HOUSING: THREADED TYPE | |
| DIMENSIONS [MM]: M30 X 1.5 | |
| ELECTRICAL DATA | |
| OPERATING VOLTAGE [V]: 20...250 AC/DC | |
| PROTECTION CLASS: I | |
| REVERSE POLARITY PROTECTION: NO | |
| OUTPUTS | |
| OUTPUT FUNCTION: NORMALLY OPEN | |
| MAX. VOLTAGE DROP SWITCHING OUTPUT DC [V]: 6.5 | |
| MAX. VOLTAGE DROP SWITCHING OUTPUT AC [V]: 6.5 | |
| MINIMUM LOAD CURRENT [MA]: 5 | |
| MAX. LEAKAGE CURRENT [MA]: 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC) | |
| PERMANENT CURRENT RATING OF SWITCHING OUTPUT AC [MA]: 250; (350 (...50 °C)) | |
| PERMANENT CURRENT RATING OF SWITCHING OUTPUT DC [MA]: 100 | |
| SHORT-TIME CURRENT RATING OF SWITCHING OUTPUT [MA]: 2200; (20 MS / 0,5 HZ) | |
| SWITCHING FREQUENCY AC [HZ]: 25 | |
| SHORT-CIRCUIT PROOF: NO | |
| OVERLOAD PROTECTION: NO | |
| MONITORING RANGE | |
| SENSING RANGE [MM]: 15 | |
| REAL SENSING RANGE SR [MM]: 15 ± 10 % | |
| OPERATING DISTANCE [MM]: 0...12.1 | |
| ACCURACY / DEVIATIONS | |
| CORRECTION FACTOR: STEEL: 1 / STAINLESS STEEL: 0.7 / BRASS: 0.5 / ALUMINUM: 0.4 / COPPER: 0.3 | |
| HYSTERESIS [% OF SR]: 3...15 | |
| SWITCH-POINT DRIFT [% OF SR]: -10...10 | |
| OPERATING CONDITIONS | |
| AMBIENT TEMPERATURE [°C]: -25...80 | |
| PROTECTION | IP: 67 |
| TESTS / APPROVALS | |
| EMC: EN 60947-5-2 | |
| EN 55011: CLASS B | |
| MTTF [YEARS] | 603 |
| UL APPROVAL | TA: 0...40 °C |
| ENCLOSURE TYPE: TYPE 1 | |
| VOLTAGE SUPPLY: HAZARDOUS VOLTAGE | |
| FILE NUMBER UL: E174191 | |
| MECHANICAL DATA | |
| WEIGHT [G]: 157.5 | |
| HOUSING: THREADED TYPE | |
| MOUNTING: NON-FLUSH MOUNTABLE | |
| DIMENSIONS [MM]: M30 X 1.5 | |
| THREAD DESIGNATION: M30 X 1.5 | |
| MATERIAL: BRASS WHITE BRONZE COATED; PES | |
| DISPLAYS / OPERATING ELEMENTS | |
| DISPLAY: SWITCHING STATUS | 1 X LED, RED |
| ELECTRICAL CONNECTION | |
| REQUIRED PROTECTION: MINIATURE FUSE TO IEC60127-2 SHEET 1; ≤ 2 A; FAST ACTING | |
| ACCESSORIES | |

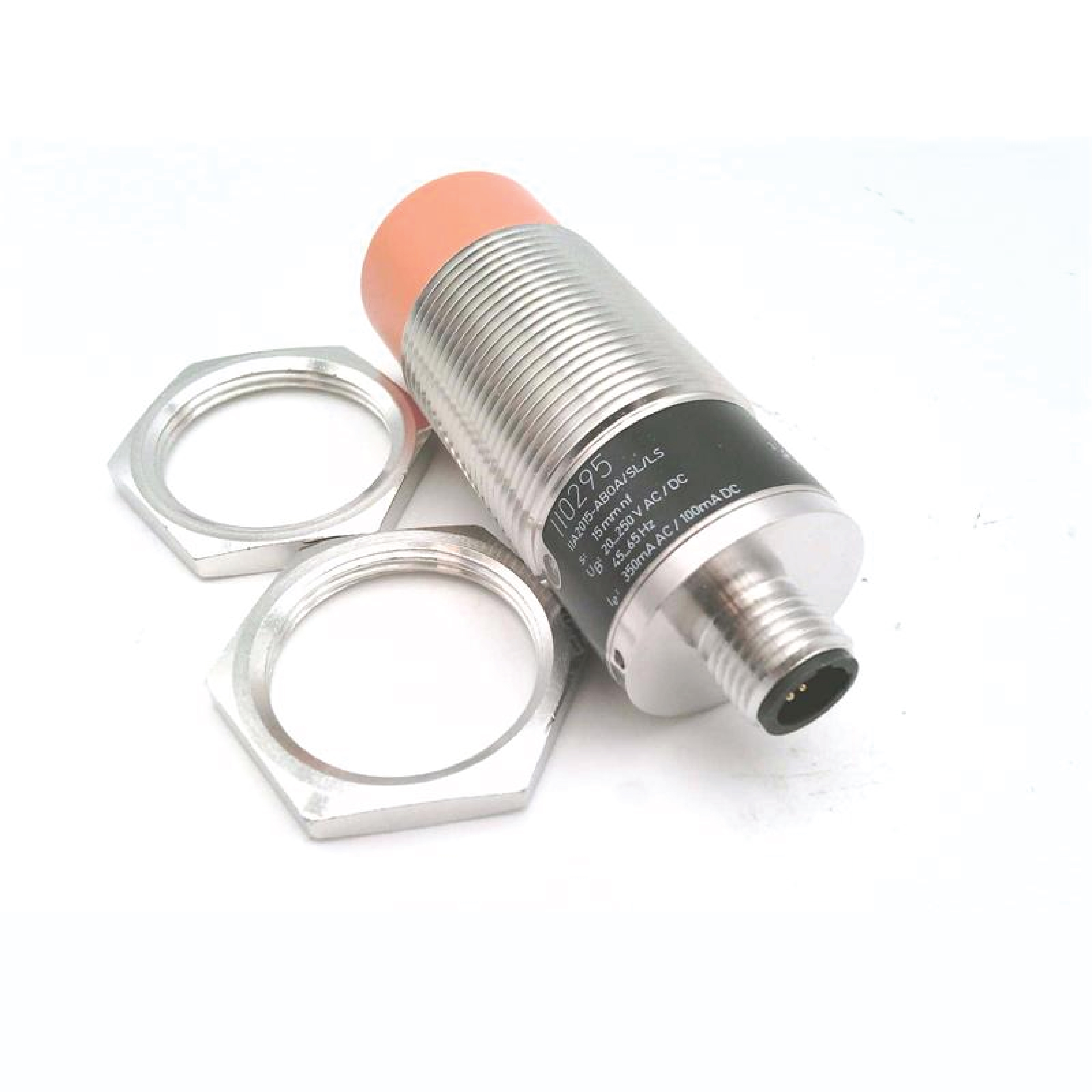

| ITEMS SUPPLIED: LOCK NUTS: 2 | |
| REMARKS | |
| REMARKS: RECOMMENDATION: CHECK THE UNIT FOR RELIABLE FUNCTION AFTER A SHORT CIRCUIT. | |
| PACK QUANTITY: 1 PCS. | |
| ELECTRICAL CONNECTION - PLUG | |
| CONNECTOR: 1 X 1/2"; CODING: C | |
